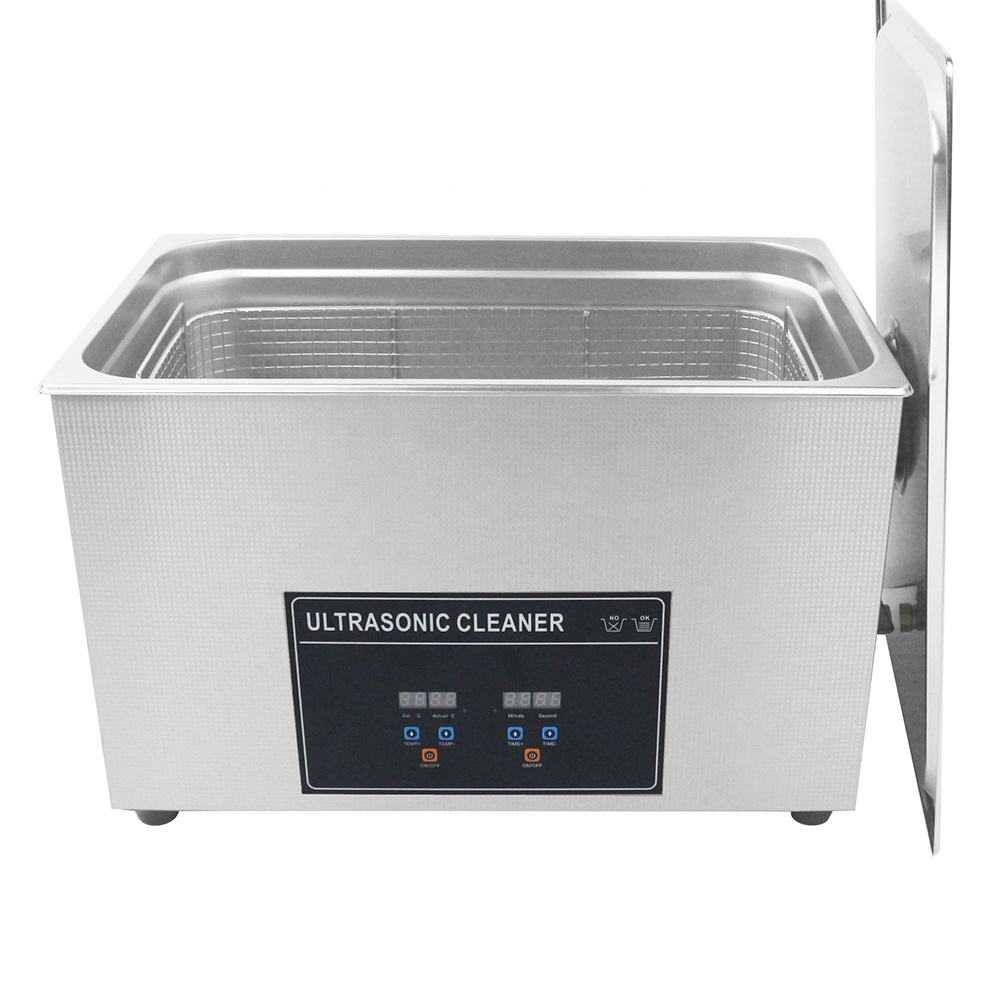

The CJ-100SD is a 30-litre industrial ultrasonic cleaner designed for intensive cleaning of compatible mechanical parts, automotive components, tools, laboratory equipment and other components that benefit from ultrasonic cleaning.

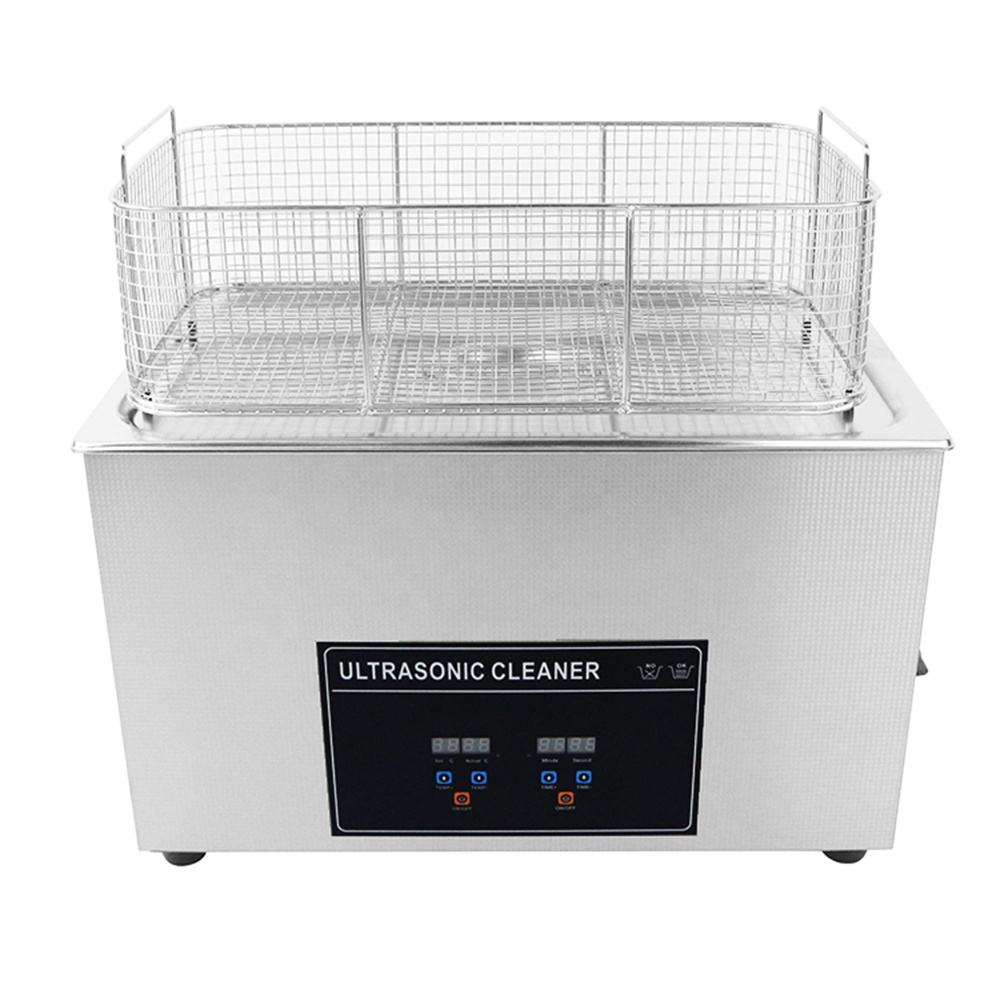

Its large SUS304 stainless-steel tank combines ultrasonic cleaning with adjustable heating and digital controls, providing a versatile cleaning system for workshops, laboratories and professional environments.
The Bramfords CJ-100SD configuration provides 840W of ultrasonic power across its 30-litre cleaning tank.
Ultrasonic transducers generate high-frequency sound waves through the cleaning liquid, producing cavitation that helps dislodge contamination from surfaces, recesses and other areas that can be difficult to clean manually.

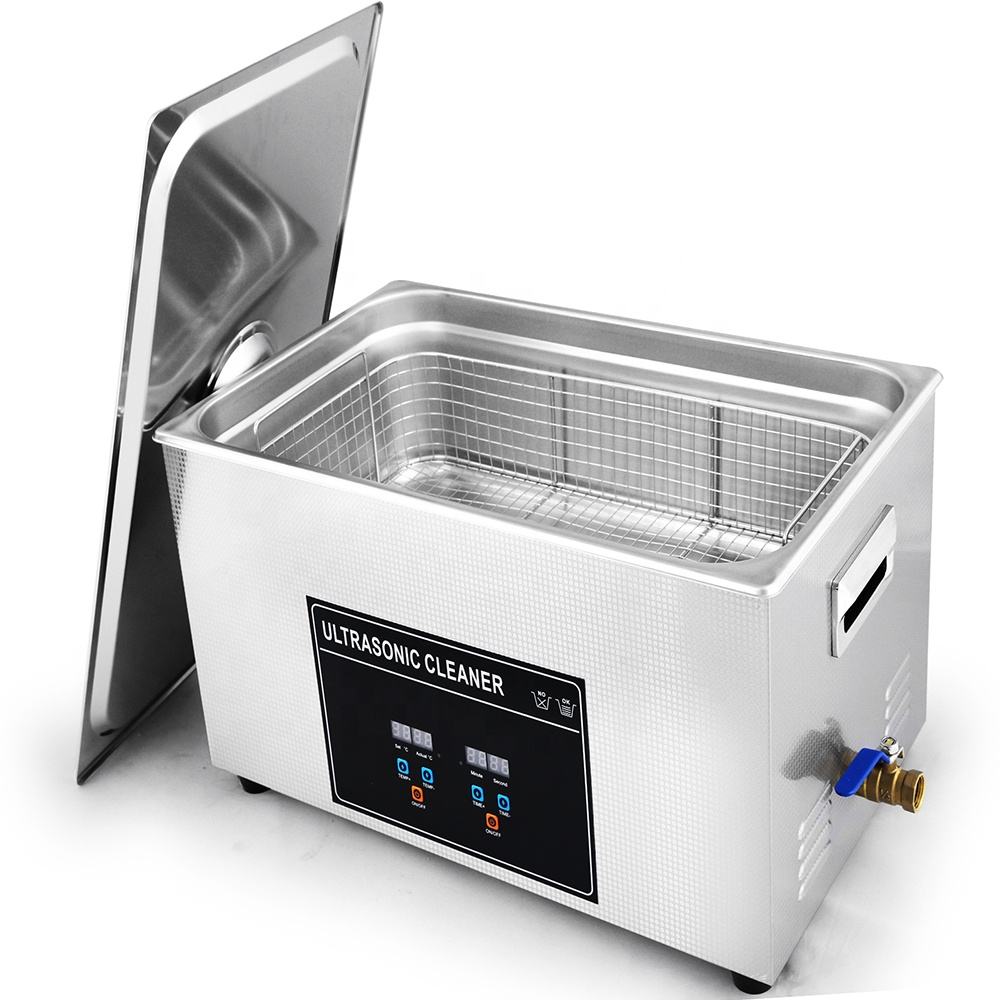

Integrated heating allows the cleaning solution to be heated to suit compatible cleaning processes.
CJ-100SD family documentation specifies adjustable heating up to approximately 80°C. Heating can be particularly useful where an appropriate cleaning solution needs assistance loosening oils, grease and other contamination.
The appropriate temperature should always be selected according to the component and cleaning solution being used.

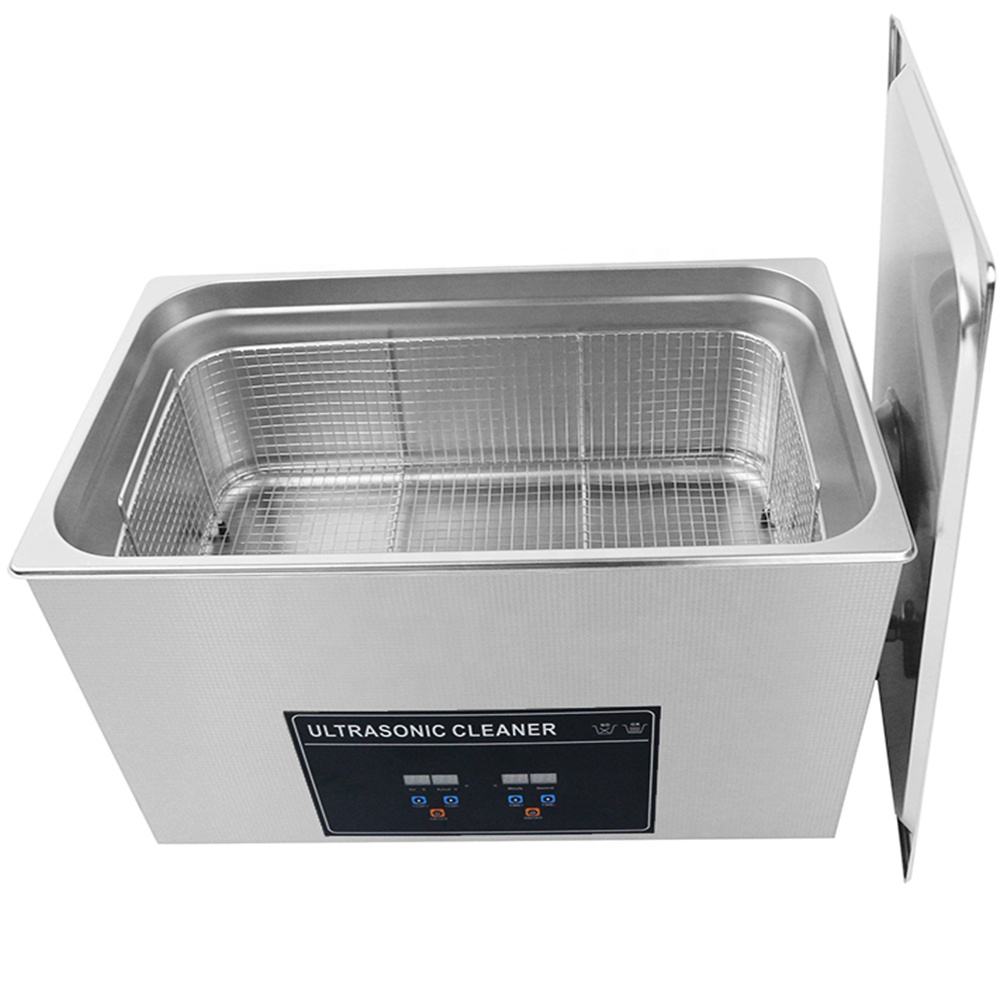

The large 30L ultrasonic bath provides substantially more working capacity than small jewellery or domestic ultrasonic cleaners.
Comparable 100SD configurations use an internal tank measuring approximately 500 × 300 × 200mm, manufactured from SUS304 stainless steel.
This capacity allows larger components or batches of smaller parts to be cleaned within the working limits of the tank and basket.

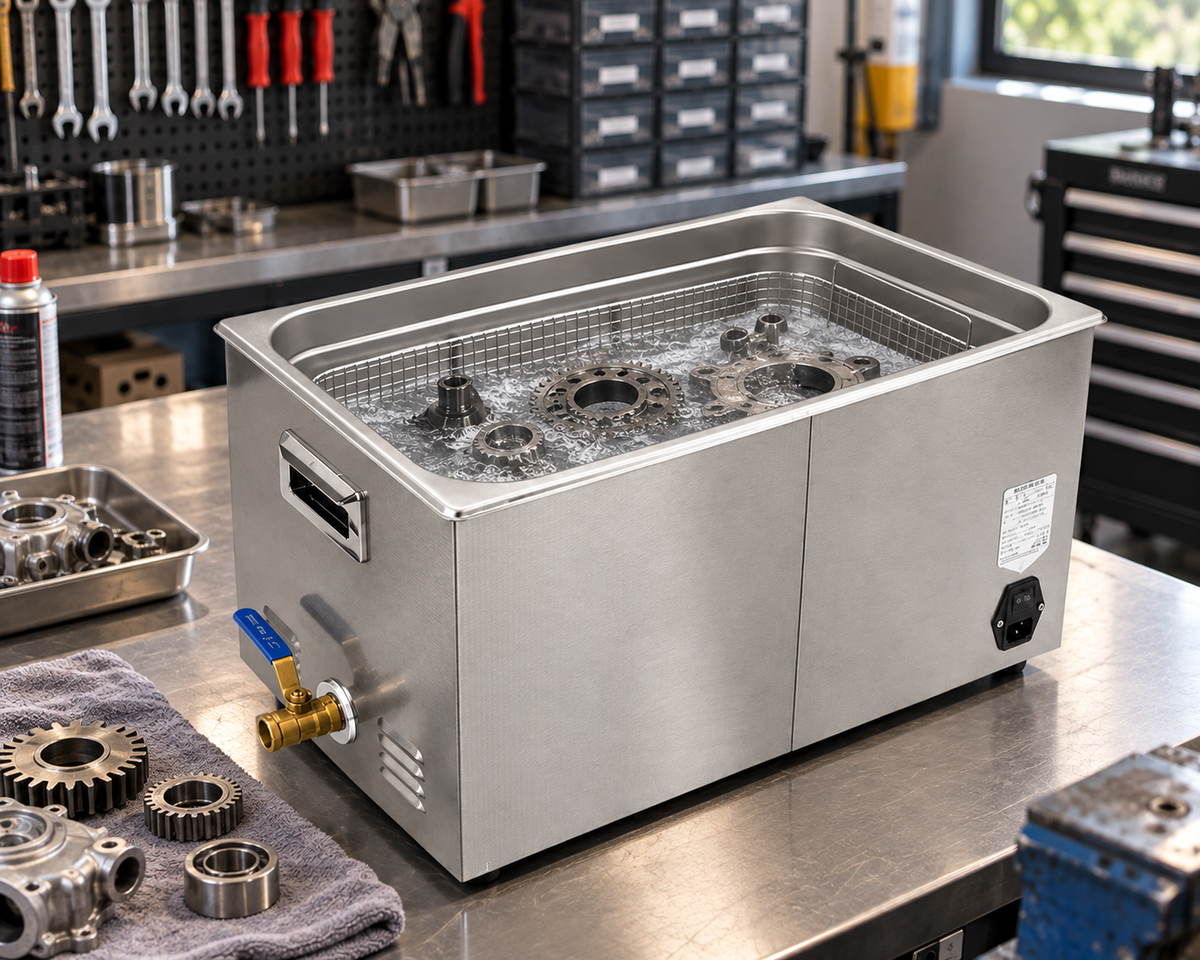

The CJ-100SD is particularly well suited to compatible metal and mechanical components where contamination may be present around complex surfaces, openings and recesses.
Potential applications include compatible automotive components, gears, tools, hardware and other mechanical parts. The exact Alibaba product is itself marketed for engine and gear cleaning, supporting this positioning.
Ultrasonic cleaning can also be useful for compatible automotive components where oil, grease and other deposits need to be removed.
The CJ-100SD platform includes a degassing function designed to help remove entrained air from freshly prepared cleaning liquid.
Reducing dissolved or trapped gas helps establish more consistent ultrasonic cavitation before the main cleaning process. The SD family is specifically documented with enhanced cleaning modes beyond the simpler CJ-100S platform.

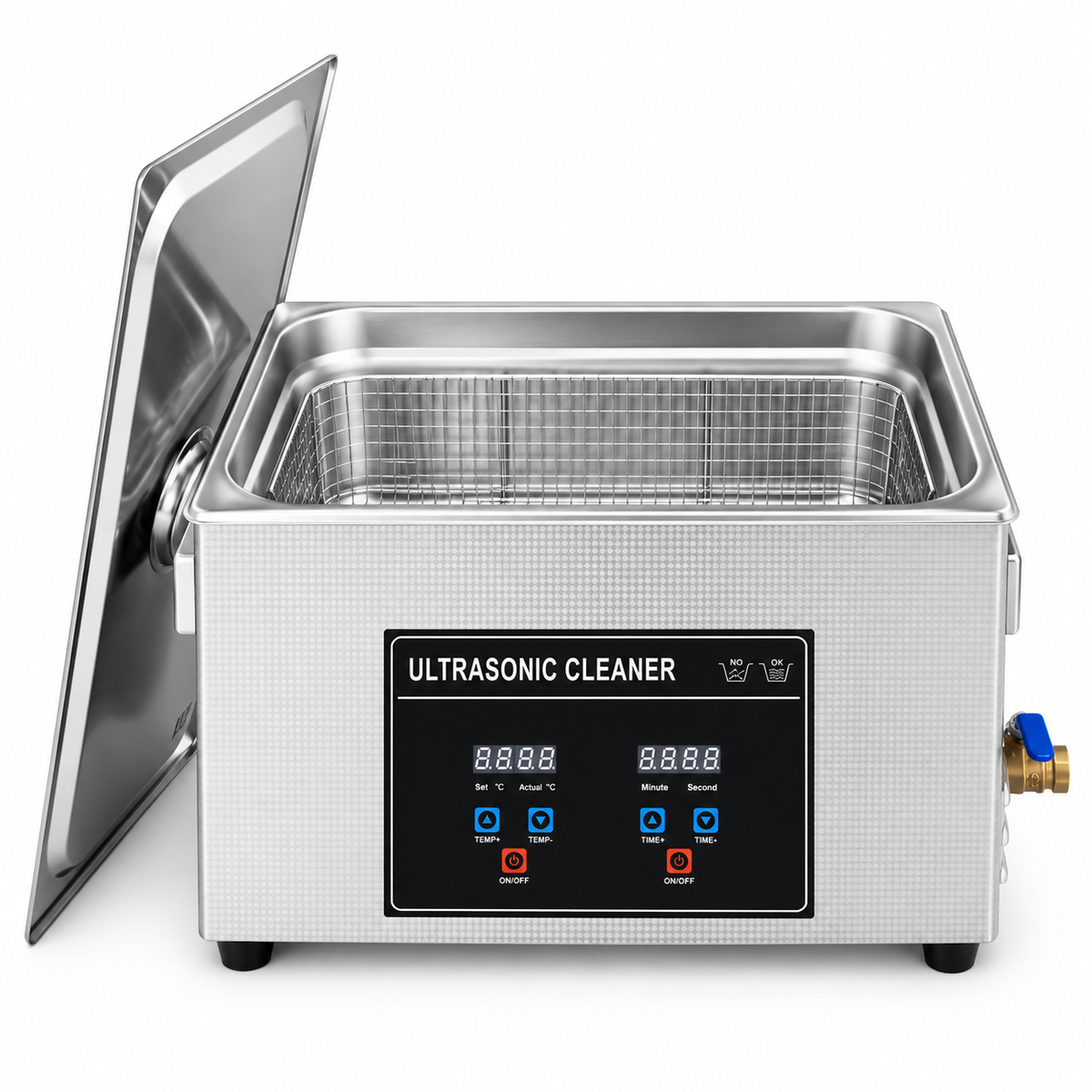

Digital controls allow cleaning parameters to be selected according to the components and cleaning process.
The CJ-100SD series is designed as the more configurable version of the CJ ultrasonic-cleaner range, providing greater flexibility for professional and industrial cleaning equipment requirements.

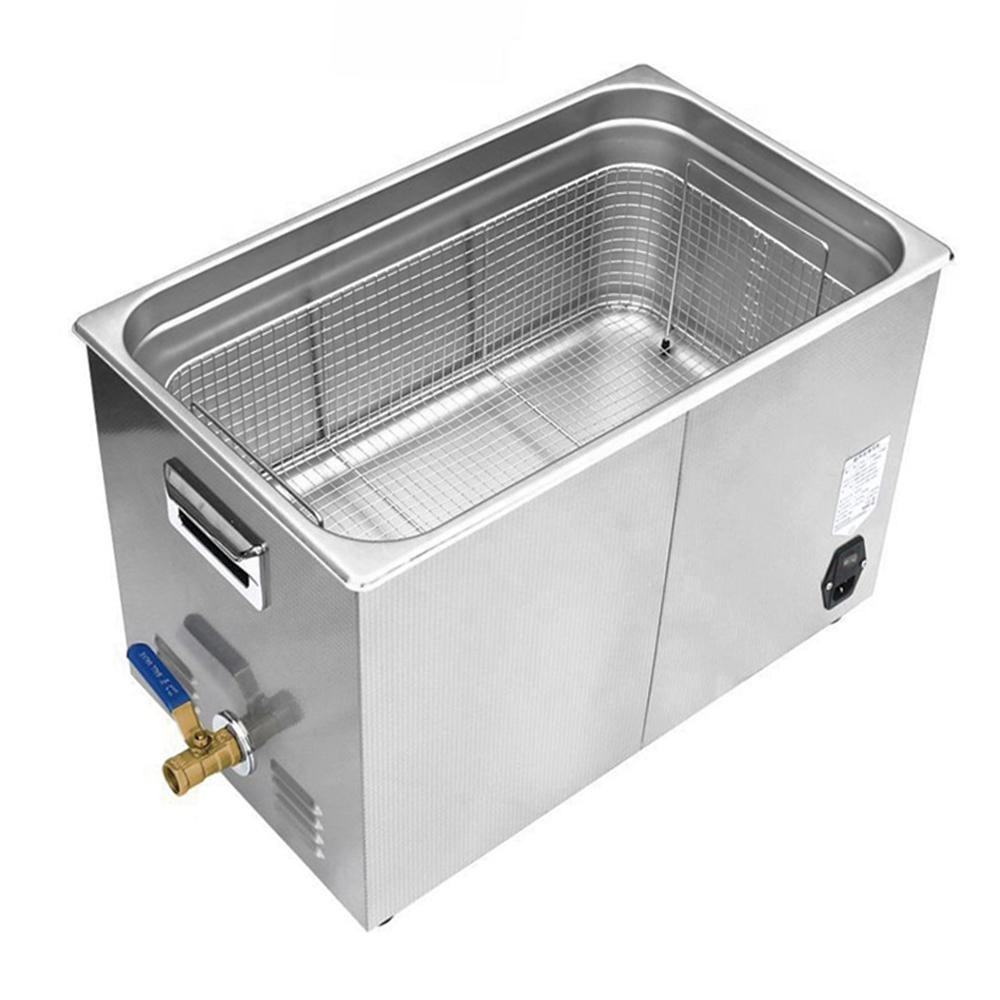

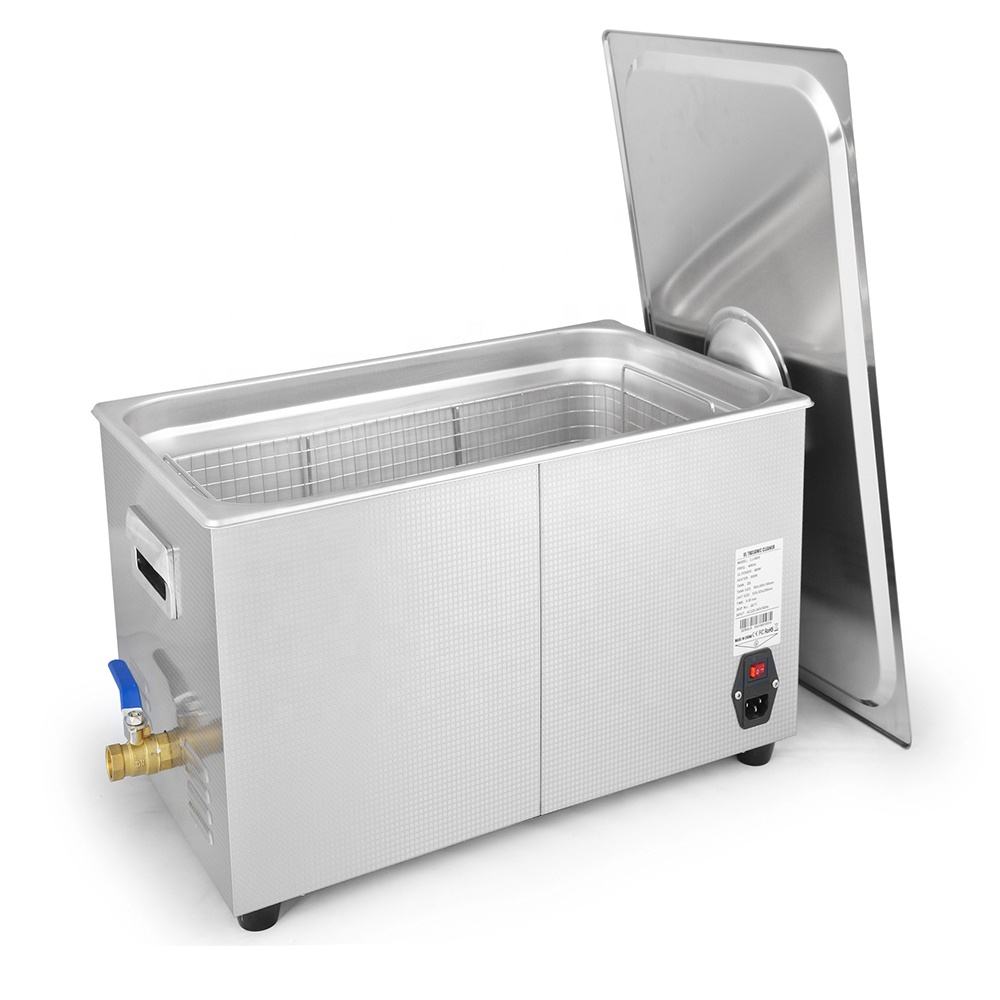

An integrated drain valve allows used cleaning liquid to be emptied from the 30-litre tank without manually lifting and tipping the machine.

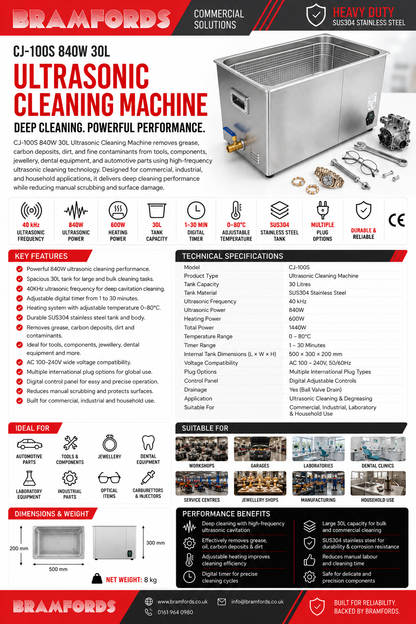

| Model | CJ-100SD |
|---|---|
| Product Type | Industrial Ultrasonic Cleaner |
| Tank Capacity | 30L |
| Ultrasonic Power | 840W |
| Transducers | 14* |
| Ultrasoinc Frequency | 40kHz / multi-frequency capability* |
| Heating | Integrated |
| Temperature Range | 0–80°C |
| Tank Material | SUS304 Stainless Steel |
| Tank Dimensions | Approx. 500 × 300 × 200mm* |
| Timer | Adjustable |
| Degas Function | Yes |
| Controls | Digital |
| Voltage | 220V |
| Typical Applications | Mechanical parts, automotive components, tools, laboratory equipment and compatible components |
