Explore laboratory equipment for compatible sample-separation and heating processes. Browse a benchtop laboratory centrifuge, a high-temperature muffle furnace and a specialist dental laboratory tube heater.
Choose around your method, sample format and installation requirements. Rotor compatibility, usable chamber space and operating temperature matter alongside headline speed and power ratings. The guidance below explains what to check before selecting equipment for your laboratory.
Start with the process the equipment must support. For centrifugation, record the required centrifugal force, sample volume, tube format and run conditions. For heating, record the material, working temperature, heating profile and load dimensions.
Compare these requirements with the documented capabilities of the supplied machine. A general description such as laboratory use does not establish suitability for every sample, test method or regulated workflow. Identify any documentation, calibration or validation requirements before ordering.
| Equipment | Listed specification | What to check |
|---|---|---|
| SN-LSC-4T laboratory centrifuge | Benchtop low-speed centrifuge; listed maximum 4000 RPM and 1920 × g. | Exact supplied rotor, supported tubes and adapters, required RCF, timing and sample conditions. |
| YIRUI SX-10-12 muffle furnace | Listed maximum 1200°C, 10kW power and approximately 16L chamber volume. | Continuous working temperature, usable chamber space, controller functions, process compatibility and electrical installation. |
| Neunoton S-1501 dental lab tube heater | Specialist aluminium-tube heater; listed 800W power and adjustable heating up to 350°C. | Tube dimensions, material-processing instructions and compatibility with the intended denture-production workflow. |
RPM describes rotational speed in revolutions per minute. Relative centrifugal force, or RCF, describes acceleration relative to gravity and is expressed as × g. RCF depends on both speed and rotor radius, so the same RPM can produce different forces in different rotors.
If your method specifies RCF, compare that requirement with the force available from the actual rotor configuration. Do not transfer an RPM setting from another machine without checking the relevant rotor data.

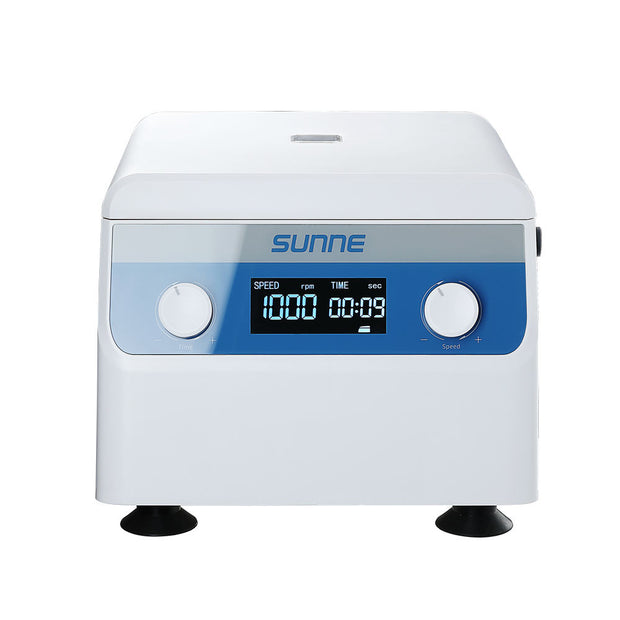

The SN-LSC-4T benchtop centrifuge listing gives maximum values of 4000 RPM and 1920 × g. Confirm that the supplied rotor and operating settings meet your method before selecting it.
Tube volume alone does not establish compatibility. Check tube diameter, height, bottom shape, closure and permitted centrifugal force, together with the rotor and adapter requirements. Tubes with the same nominal volume may need different supports.
The listing refers to a 6/8-tube rotor configuration. Confirm the exact rotor being supplied and its supported tube formats; do not assume both capacities or every adapter are included. Establish the complete usable batch capacity before comparing throughput.
Follow the manufacturer's rotor-loading and balancing instructions. Balance the complete assemblies, including tubes, contents and any required adapters, using the prescribed arrangement. Similar liquid levels do not necessarily establish equal mass.
Allow time for loading, acceleration, the specified run, deceleration and unloading. Check timing controls and braking behaviour where they affect the method. A maximum speed rating does not establish temperature control, refrigeration or suitability for temperature-sensitive samples.
Include rotor and accessory inspection in your operating procedure. Follow the manufacturer's instructions for cleaning agents, maintenance and replacement criteria. Confirm any containment or sealing requirements arising from the sample before use.
A maximum temperature rating does not necessarily establish the temperature permitted for prolonged operation. Confirm the continuous working limit and the acceptable dwell duration for your process.

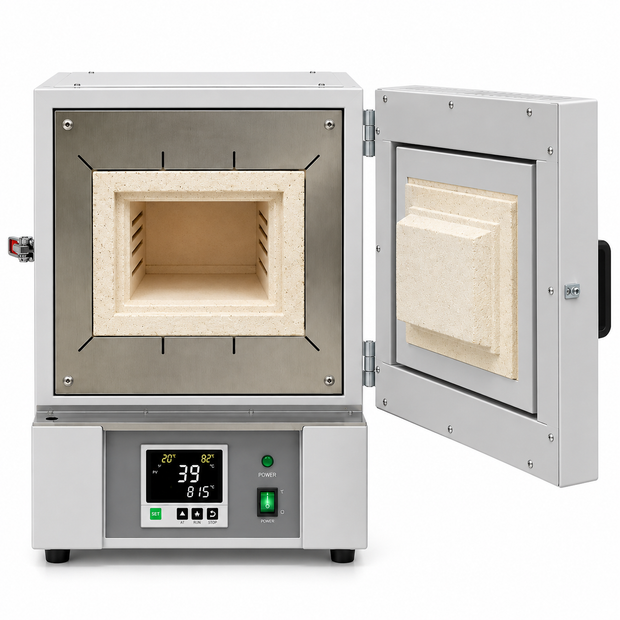

The YIRUI SX-10-12 laboratory furnace is listed with a 1200°C maximum. Establish its documented continuous operating limit before planning repeated or extended high-temperature runs.
The published internal chamber dimensions are 400 × 250 × 160mm, giving approximately 16 litres of nominal volume. Check that your samples and compatible crucibles or fixtures fit in the permitted working arrangement.
Leave the clearances required by the equipment instructions. Nominal volume does not establish the mass that can be heated or guarantee uniform temperature throughout every part of the chamber. Consider the load's geometry and thermal behaviour as well as its dimensions.
Controller display resolution, temperature accuracy and spatial uniformity are different properties. A digital display alone does not establish how evenly the loaded chamber heats or how closely a sample follows the displayed temperature.
If your method needs programmed ramps, timed holds or a defined cooling stage, confirm that the supplied controller supports those functions. Ask about documented temperature performance, calibration and verification where the test method requires them.
Ashing, heat treatment and other high-temperature processes have different requirements. Confirm sample chemistry, emissions and operating conditions before treating a furnace's temperature range as proof of process suitability.

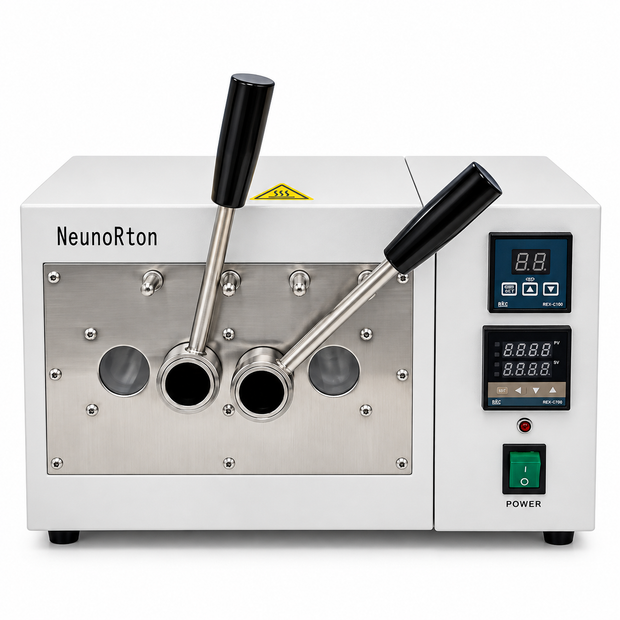

The Neunoton S-1501 is a dedicated tube-heating unit for compatible denture-processing workflows. It serves a different role from a general chamber furnace.
Confirm the aluminium-tube format and the material manufacturer's required temperature and heating duration. The heater's maximum rating is not a processing recommendation for every material. Check compatibility with the surrounding production equipment before ordering.
Plan around the actual electrical requirements of the supplied unit. The SX-10-12 listing specifies 380V three-phase power and 10kW rated input. Confirm compatibility with your site's supply and installation requirements with an appropriately qualified installer before purchase.
For heating equipment, allow the required clearances and assess ventilation around both the machine and the material being processed. Sample emissions may require process-specific extraction; a room air purifier is not automatically an appropriate substitute.
For a centrifuge, check the support surface, required clearance and access for loading and maintenance. Keep workflow space available for sample preparation and post-run handling, as well as the machine itself.
If your process includes cleaning compatible reusable components, browse our Ultrasonic Cleaners. Confirm immersion and chemical compatibility separately; ultrasonic cleaning does not by itself establish sterilisation.
Send these details through our Request a Quote page for help comparing the available equipment. Review our Shipping Policy when planning delivery and the Bramfords After-Sales Standard for information about order support.
No. Check the required centrifugal force and the actual rotor configuration, alongside tube compatibility and other method conditions.
Not automatically. Match their dimensions, shape, material and force limits to the approved rotor and adapters. Confirm compatibility using the relevant documentation.
Do not assume so. Confirm the manufacturer's continuous operating limit and permitted dwell conditions for the actual model.
Only approximately. Usable capacity depends on sample dimensions, crucibles or supports, required spacing and the permitted loading arrangement.
No. It is designed around a specialist tube-heating workflow. Select it only where the tube format and documented material-processing requirements are compatible.
