This 38L industrial ultrasonic cleaner provides high-capacity ultrasonic cleaning for mechanical parts, tools, automotive components and other compatible items. Operating at 40kHz with an integrated 20–80°C heating system, it combines ultrasonic cavitation with controlled heated cleaning to remove contaminants from surfaces, recesses and difficult-to-access areas.
The large stainless-steel tank provides considerably greater working capacity than smaller desktop ultrasonic baths, making the machine suitable for workshops, maintenance environments and industrial cleaning applications.
The ultrasonic cleaning tank provides 38 litres of capacity with internal dimensions of approximately 500 × 300 × 250mm.
This larger chamber accommodates components that may be unsuitable for compact laboratory or jewellery ultrasonic cleaners while retaining a benchtop/workshop machine format.
Stainless-steel construction provides a durable working chamber for repeated ultrasonic-cleaning cycles.
The machine operates at an ultrasonic frequency of 40kHz.
Ultrasonic transducers generate high-frequency energy through the cleaning liquid, creating microscopic cavitation that assists in dislodging contamination from immersed components.
This process is particularly useful for components with recesses, holes and complex surfaces that can be difficult to clean consistently using manual methods alone.
An integrated heating system allows the cleaning solution to be adjusted between approximately 20°C and 80°C.
Controlled heating can improve cleaning performance for suitable contaminants and cleaning solutions, particularly where oils, grease or residues need to be loosened from component surfaces.
The appropriate temperature and cleaning solution should always be selected according to the material and contaminant being processed.

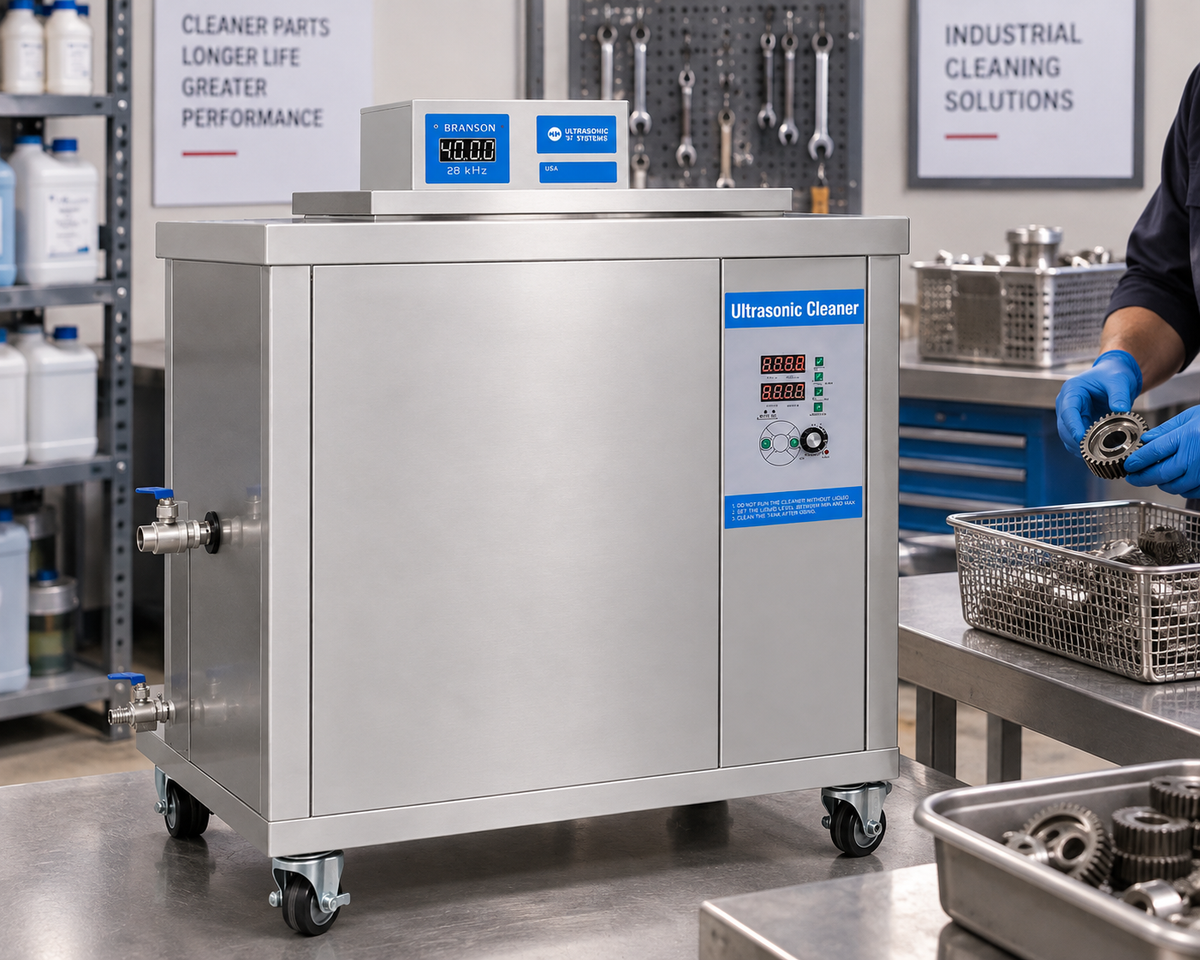

The 38L capacity makes the machine particularly well suited to ultrasonic parts cleaning.
Compatible applications can include mechanical components, workshop tools, automotive parts, hardware and other appropriately sized items requiring cleaning around detailed or difficult-to-access surfaces.
Comparable industrial 38L systems are specifically used for metal parts, mechanical equipment and automotive-component cleaning.
The machine can also be used for compatible automotive components where ultrasonic cleaning is appropriate, including suitably sized carburettor components and other removable mechanical parts.
Adjustable operating controls allow cleaning time and temperature to be selected according to the component, contamination and cleaning process.

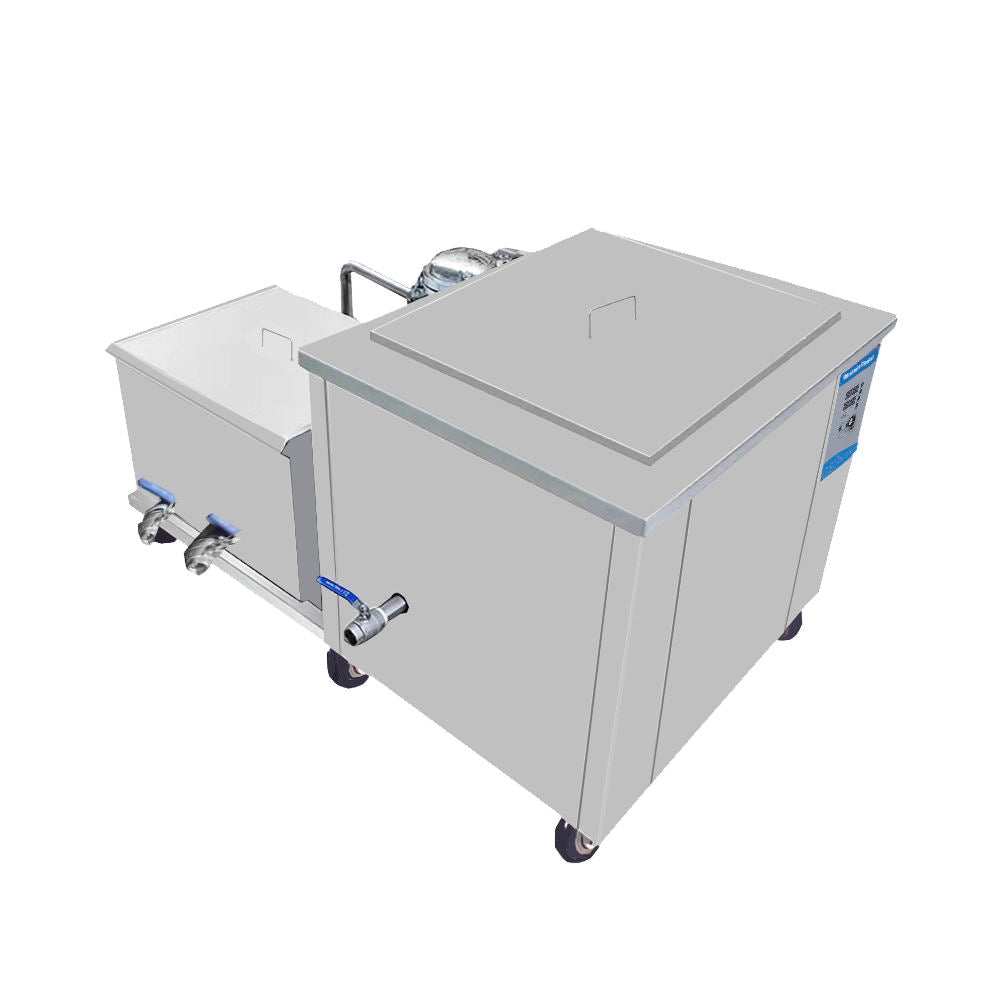

The integrated drain valve also allows used cleaning liquid to be removed from the tank more conveniently after operation.
As with other specialist cleaning equipment, cleaning parameters should be selected according to the workpiece material and the instructions for any cleaning solution being used.

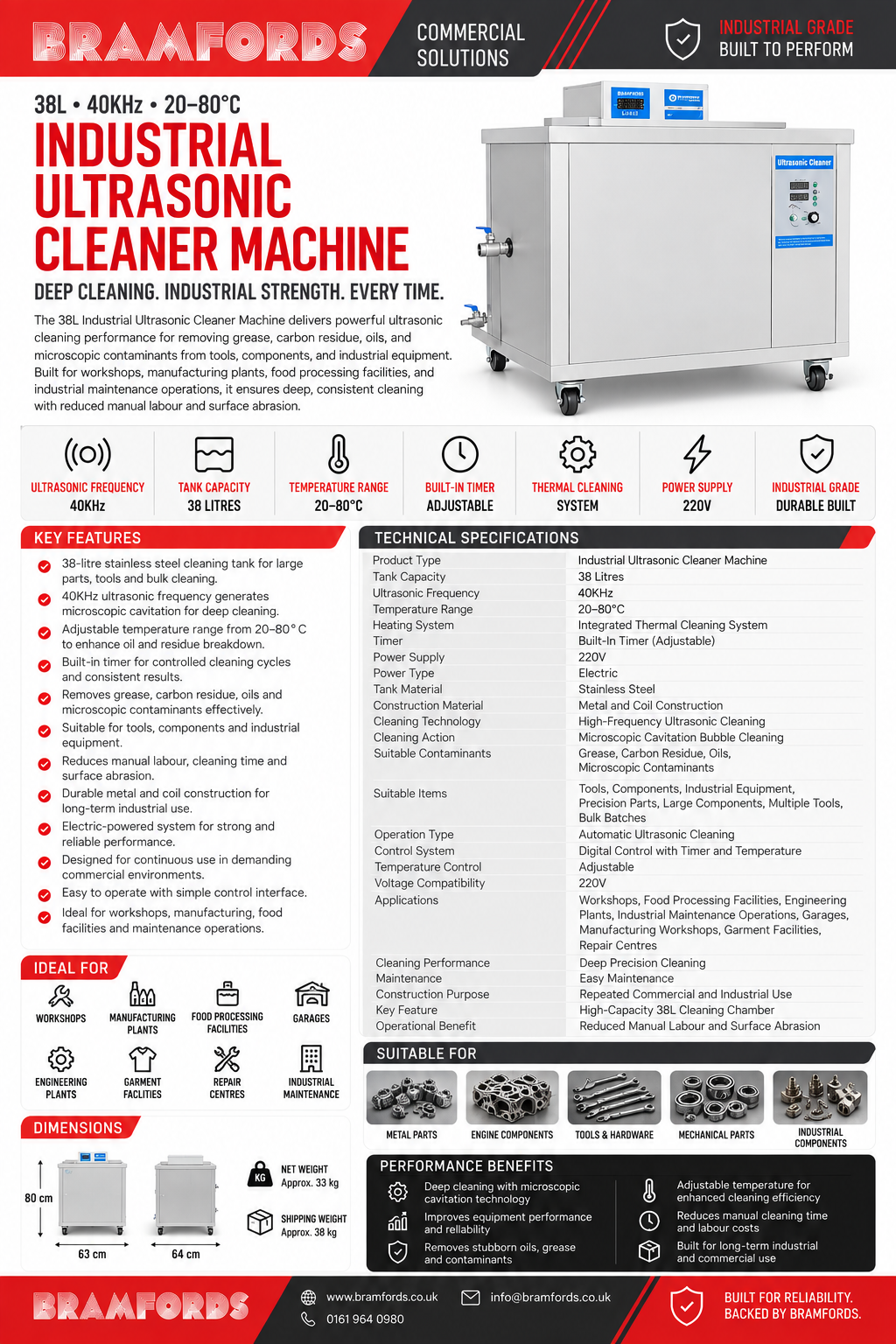

| Product Type | Industrial Ultrasonic Cleaner |
|---|---|
| Tank Capacity | 38L |
| Ultrasonic Frequency | 40kHz |
| Tank Dimensions | 500 × 300 × 250mm |
| Transducers | 12 |
| Temperature Range | 20–80°C |
| Tank Material | Stainless Steel |
| Timer | Adjustable |
| Heating | Integrated Heating System |
| Drainage | Integrated Drain Valve |
| Power Supply | 220–240V / 50Hz* |
| Installation | Benchtop / Workshop |
| Typical Applications | Mechanical parts, automotive components, tools and compatible industrial components |
