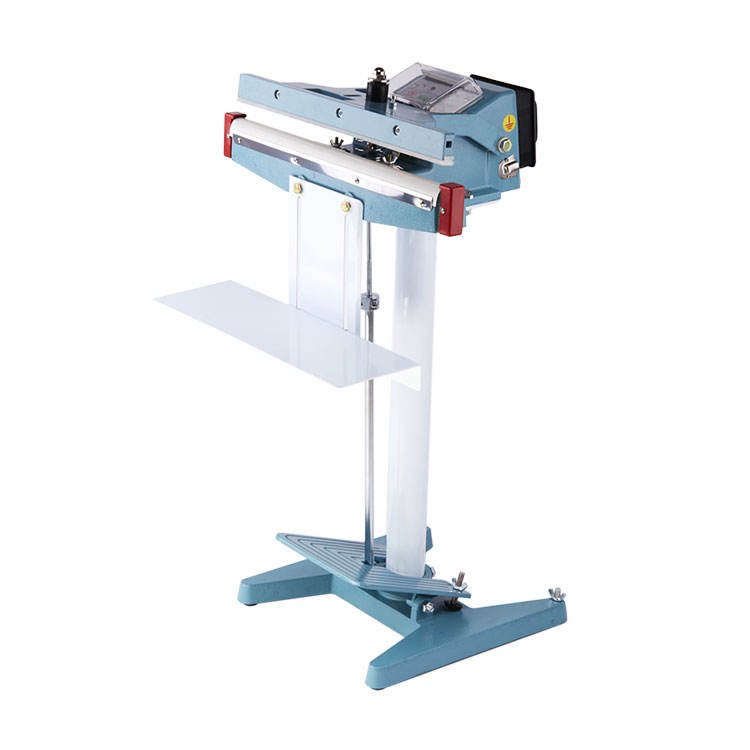

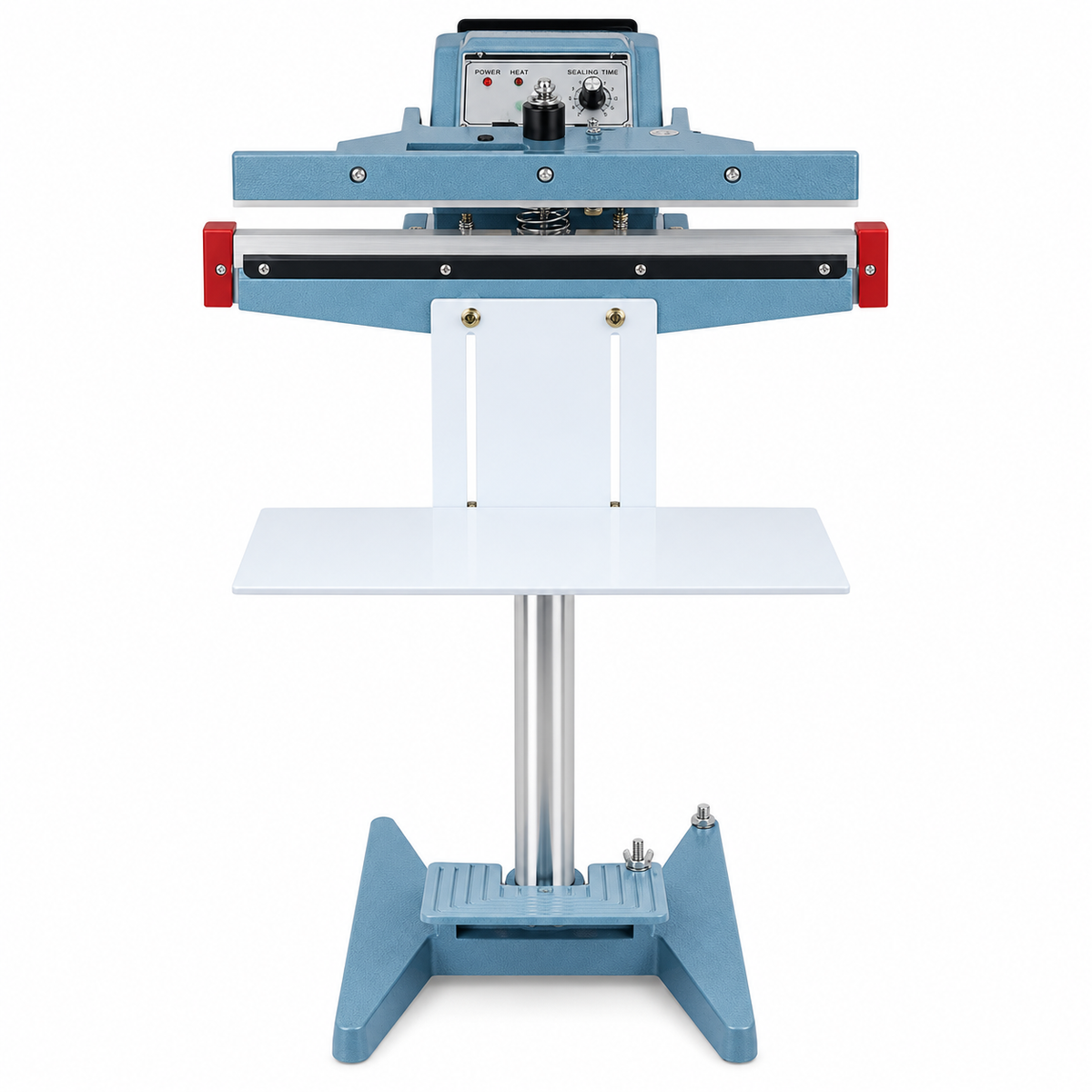

The HIPAC PSF-450 is a floor-standing pedal impulse sealer designed for sealing compatible plastic bags, polythene bags, pouches and flexible packaging. Its 450mm sealing bar and foot-operated mechanism allow the operator to position packaging with both hands before activating the sealing cycle.
Unlike continuously heated sealing equipment, the PSF-450 uses impulse heating during the sealing cycle, making it suitable for repeated bag-sealing work in packaging, food-production, retail and industrial environments.
The PSF-450 provides a sealing length of up to 450mm and an approximately 8mm-wide seal.
The larger sealing bar accommodates packaging considerably wider than typical handheld or compact tabletop impulse sealers, making the machine suitable for larger bags and pouches within its supported material range.

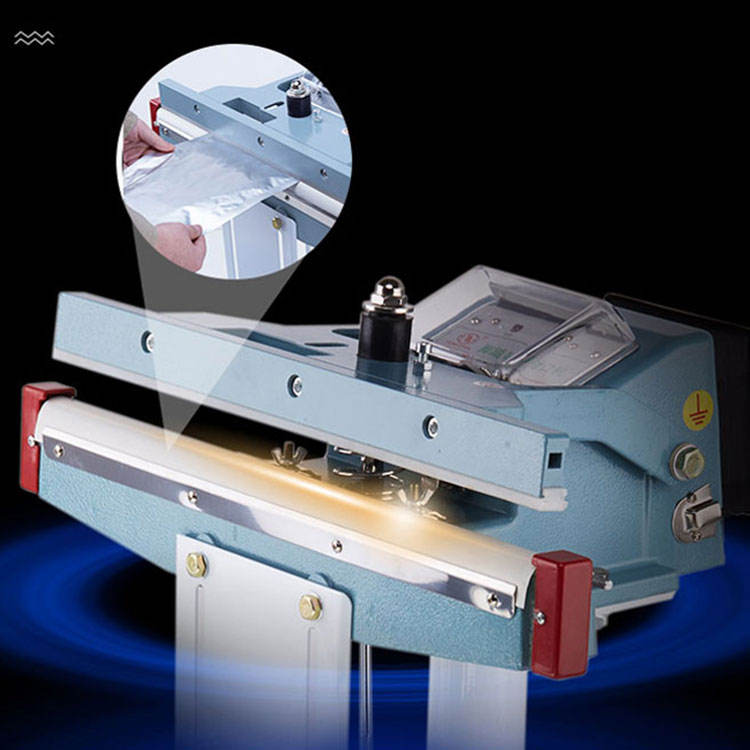

Sealing is activated using the integrated foot pedal, leaving both hands available to position and support the bag.
This is particularly useful when working with larger packaging or filled bags, where maintaining correct alignment across the sealing bar can be more difficult with a hand-operated sealer.
An adjustable support platform helps position the package at the required working height.
The impulse sealing cycle can be adjusted according to the compatible packaging material being processed.
PSF-450 documentation specifies an approximate heating/sealing time range of 0.2–2 seconds, allowing the operator to adapt the cycle to different compatible films and material thicknesses.
The appropriate setting should be established using test seals before production use.
The PSF-series platform is designed for thermoplastic packaging and is documented for materials including polyethylene (PE), polypropylene (PP) and compatible multilayer plastic films.
This makes the machine suitable for sealing compatible product bags, food packaging, stand-up pouches and other flexible packaging within its sealing dimensions.
Material compatibility should always be confirmed before production sealing.

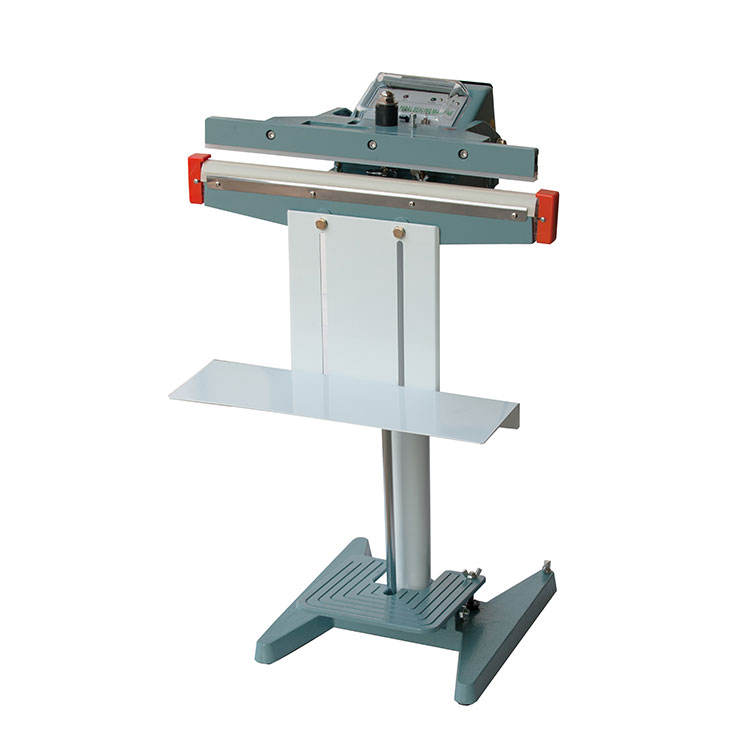

Unlike smaller desktop impulse sealers, the PSF-450 uses a floor-standing frame with pedal control and product support.
This arrangement is useful for repeated packaging work where operators require greater control over bag positioning and where the size or contents of the package make a small hand-operated sealer inconvenient.
The PSF-450 can support packaging workflows across food production, retail products, manufacturing and general commercial packaging. Alibaba categorises the PSF platform for applications including food, beverage, medical, chemical, commodity and textile packaging.
Its combination of pedal operation, 450mm sealing capacity and adjustable impulse timing makes it particularly suitable for businesses upgrading their packaging equipment beyond occasional manual bag sealing.

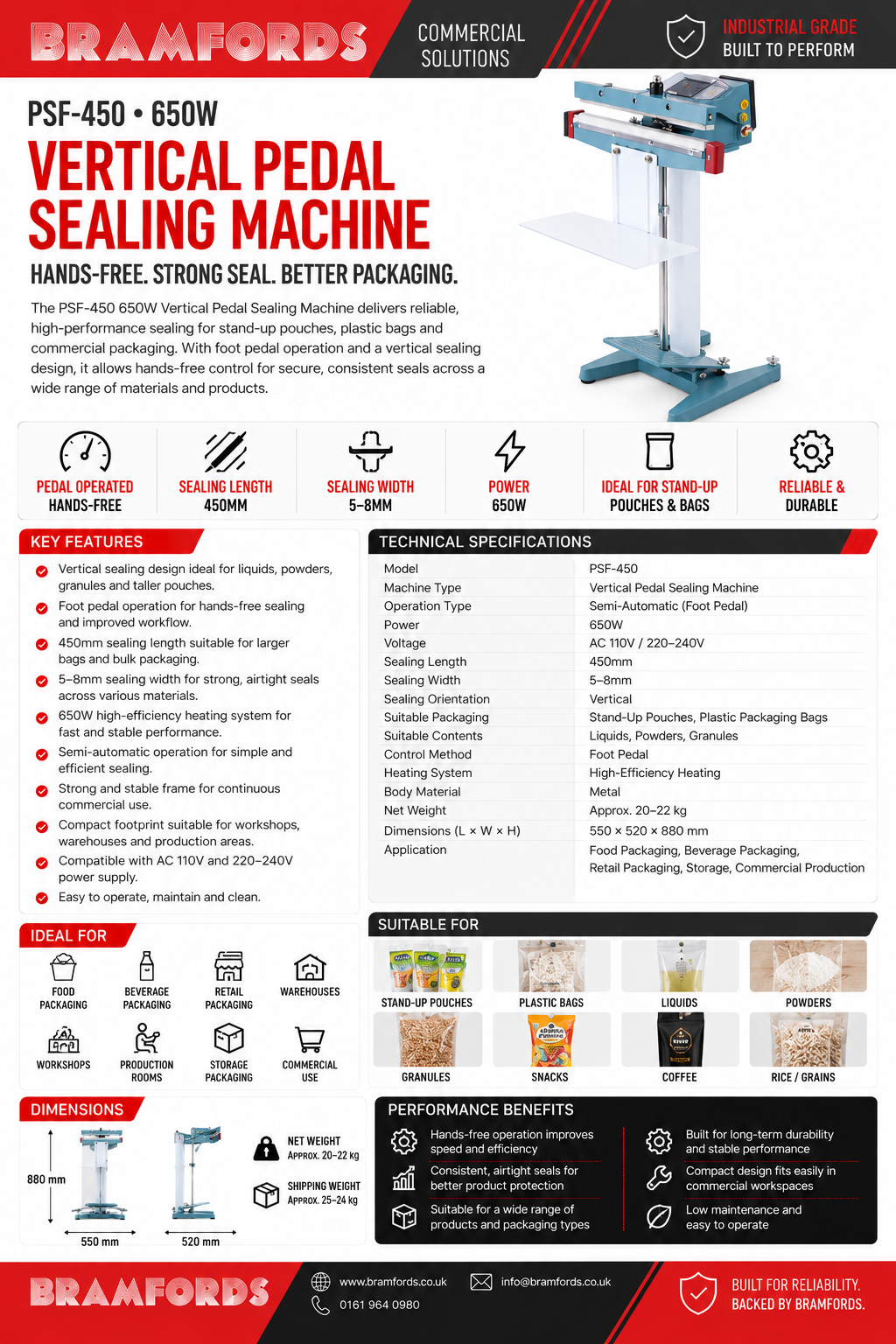

| Model | HIPAC PSF-450 |
|---|---|
| Product Type | Pedal Impulse Sealer |
| Sealing Length | 450mm |
| Sealing Width | 8mm |
| Sealing Method | Impulse Heat Sealing |
| Operation | Foot Pedal |
| Heat / Seal Time | Approx. 0.2–2 seconds |
| Seal Time Control | Adjustable |
| Automation | Semi-Automatic / Pedal Operated |
| Voltage | 220–240V / 50Hz for UK configuration* |
| Rated Power | 650W |
| Compatible Packaging | Compatible thermoplastic bags and pouches |
| Typical Materials | PE, PP and compatible multilayer films |
| Working Support | Adjustable bag/product support |
| Installation | Floor-standing |
| Typical Applications | Bag, pouch and flexible-packaging sealing |
