YIRUI SX-10-12 Laboratory Muffle Furnace – 1200°C, 10kW

1200°C Laboratory Muffle Furnace

The YIRUI SX-10-12 is a high-temperature laboratory muffle furnace designed for controlled heating, material testing and suitable heat-treatment processes. With a maximum operating temperature of 1200°C, 10kW rated power and an approximately 16-litre heating chamber, it provides substantial thermal capacity for laboratory, research and industrial workshop environments.

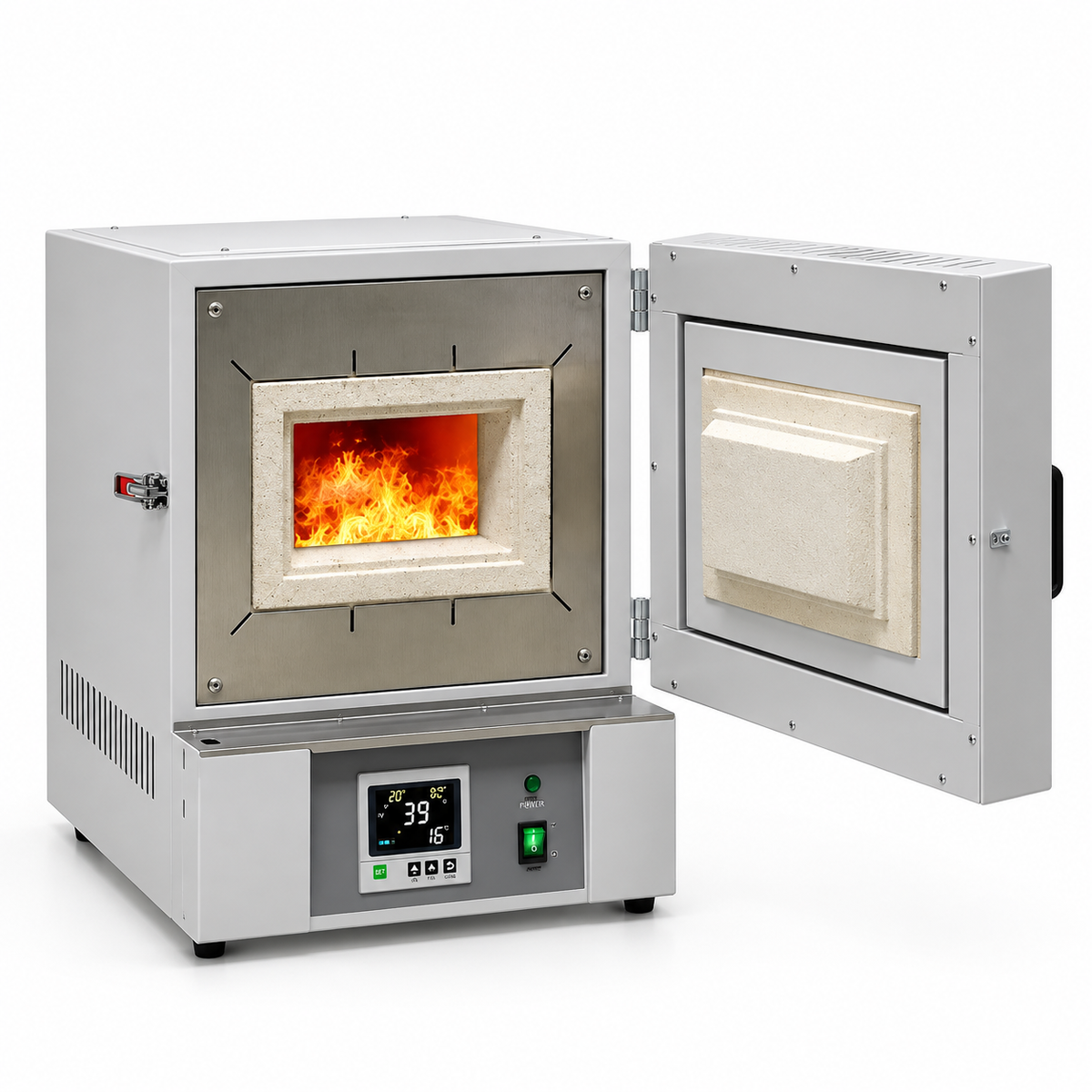

The furnace uses electric resistance heating within an insulated chamber measuring 400 × 250 × 160mm, providing a dedicated enclosed environment for high-temperature processing.

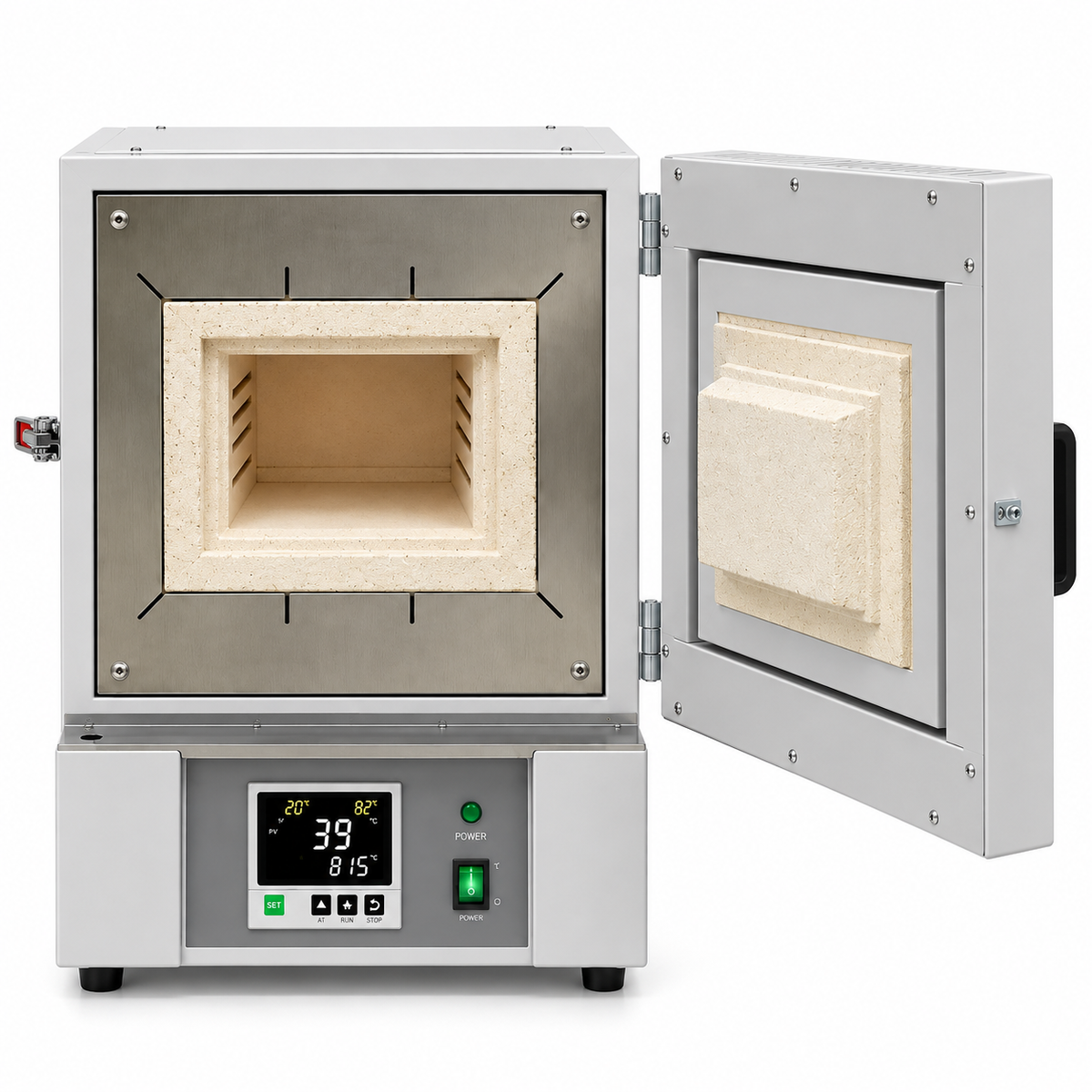

400 × 250 × 160mm Heating Chamber

The SX-10-12 provides approximately 16 litres of internal chamber capacity, giving users considerably more working space than smaller benchtop laboratory furnaces.

Its box-style chamber provides access to the heated working area through the front door, allowing suitable samples, components and laboratory materials to be positioned within the furnace before the heating cycle begins.

High-Temperature Operation up to 1200°C

Designed for processes requiring temperatures substantially above those available from conventional laboratory ovens, the SX-10-12 operates at temperatures up to 1200°C.

Temperature should be selected according to the material, sample and process being undertaken, with appropriate high-temperature operating procedures followed throughout use.

10kW Electric Resistance Heating

The furnace uses a 10kW electric resistance heating system to bring the insulated chamber to the required operating temperature.

The combination of resistance heating and thermal insulation helps retain heat within the working chamber while providing the high-temperature environment required for laboratory and material-processing applications.

Insulated Furnace Chamber

The SX-10-12 incorporates high-temperature insulation around its heating chamber to reduce heat transfer through the furnace body and improve thermal efficiency.

This insulated construction is particularly important in laboratory muffle furnaces, where the internal chamber must operate at temperatures reaching 1200°C while the surrounding structure provides containment and protection.

Laboratory Testing & Heat-Treatment Applications

The furnace is suitable for controlled high-temperature work in laboratories, research facilities, material-testing environments and industrial workshops.

Potential applications include laboratory heating and suitable material heat-treatment processes where the required temperature and sample dimensions fall within the operating capabilities of the furnace.

As with other specialist laboratory equipment, any process-specific temperature, heating rate, dwell time and cooling procedure should be determined according to the material and test method being used.

380V Three-Phase Electrical Supply

The SX-10-12 is a high-power 10kW furnace requiring a 380V three-phase electrical supply rather than a conventional UK domestic socket.

Installation should therefore be planned around the electrical requirements of the supplied unit and undertaken by an appropriately qualified person.
