Yishou YS1835C Mini Metal Lathe – 180 × 350mm, 0–2000 RPM, 500W

Compact 7 × 14 Mini Metal Lathe for Precision Turning

The YISHOU 1835C is a compact mini metal lathe designed for small-component turning, model engineering, prototyping, repair work and workshop machining. With a 180mm swing over the bed and 350mm distance between centres, the 7 × 14 benchtop format provides useful machining capacity while maintaining a relatively compact footprint.

Its variable-speed spindle operates from 0–2000 RPM, allowing spindle speed to be adjusted for different turning operations, workpiece diameters and tooling requirements.

180 × 350mm Machining Capacity

The 1835C provides a maximum swing over the bed of 180mm and 350mm between centres. This makes the machine suitable for machining smaller shafts, bushes, spacers, threaded components and other workshop parts within its working capacity.

The compact format also makes this small metal lathe suitable for workshops where a full-size engineering lathe would occupy unnecessary floor space.

Variable Speed up to 2000 RPM

Variable spindle speed from 0–2000 RPM gives the operator greater control over turning and finishing operations.

Adjusting spindle speed allows the machine to accommodate different workpiece sizes, tooling arrangements and machining processes without relying on a single fixed operating speed.

Turning, Facing, Drilling & Threading

The YISHOU 1835C can be used for common metal-turning operations including longitudinal turning, facing, drilling and threading.

Its carriage, cross-slide and tool-holding arrangement provide the controlled movement required for shaping cylindrical components and producing repeatable cuts on appropriately sized workpieces.

MT3 Spindle System

An MT3 spindle taper provides compatibility with suitable Morse-taper tooling and accessories. The lathe's spindle and chuck arrangement holds the workpiece while the carriage and cutting tool are positioned along the bed for controlled machining.

Compatible tooling should always be selected according to the spindle, chuck and individual machining operation.

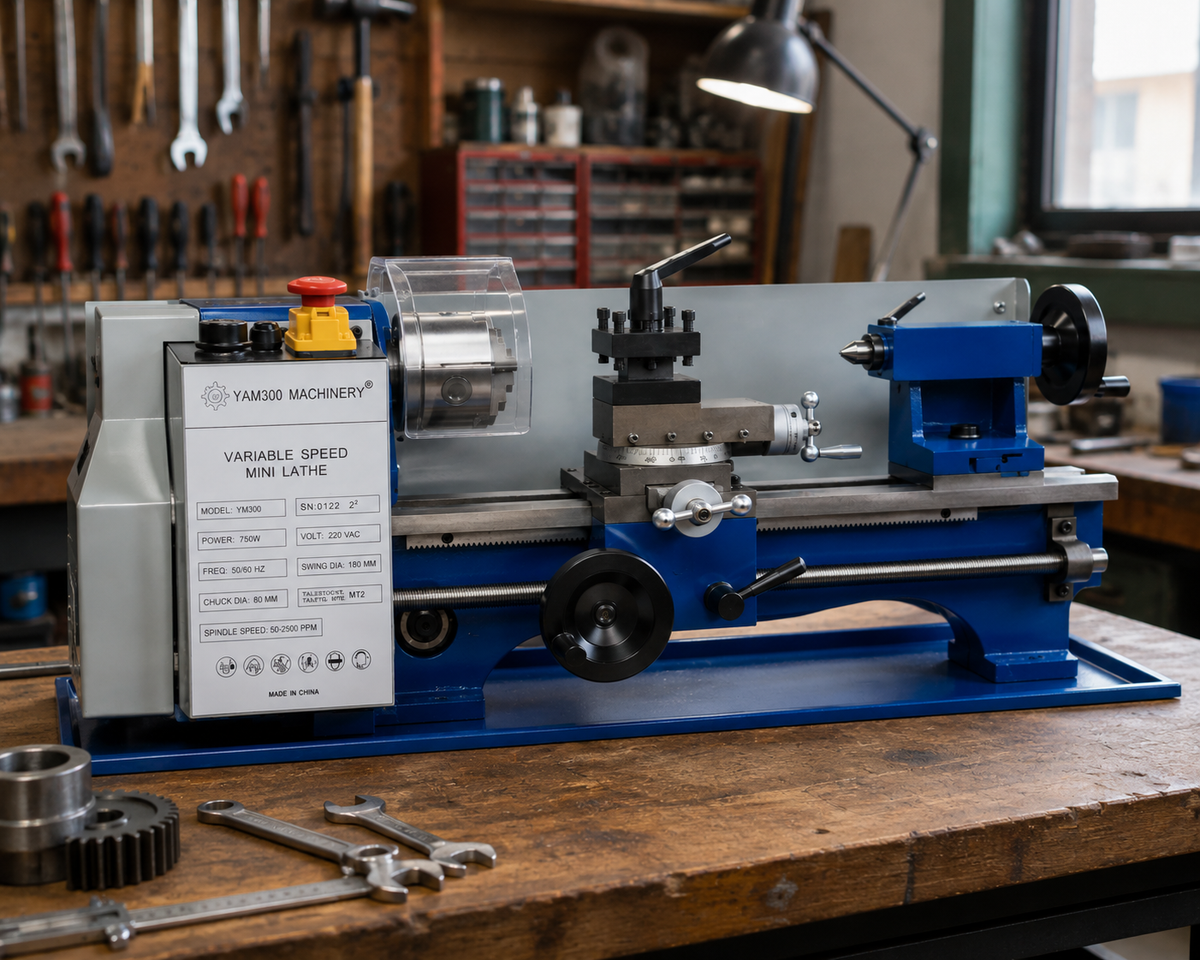

Benchtop Lathe for Model Engineering & Workshop Use

The 7 × 14 format is particularly suited to model engineering, small-scale fabrication, maintenance work, technical workshops and prototyping.

At approximately 750 × 310 × 290mm, the machine can be installed on a suitable workshop bench while still providing the rigidity and working capacity expected from a dedicated metal turning lathe.

For other machining and finishing needs, explore our workshop equipment collection.

110V / 220V Configurations

The YISHOU 1835C is available in 110V and 220V electrical configurations. The required voltage should be selected for the intended installation and confirmed when ordering.
